OWBI1::CIMInstance Class Reference

The CIMInstance class encapsulates all information pertinent to a CIMInstance. More...

#include <OWBI1_CIMInstance.hpp>

Inheritance diagram for OWBI1::CIMInstance:

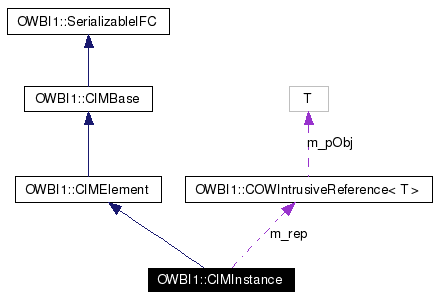

[legend]Collaboration diagram for OWBI1::CIMInstance:

[legend]List of all members.

Public Types
typedef detail::CIMInstanceRepRef CIMInstance::*	safe_bool
enum	{ SERIALIZATION_VERSION = 1 }
enum	EErrorCodes { E_INSTANCE_HAS_NO_SUCH_PROPERTY }
Public Member Functions
	CIMInstance ()
	Default ctor.
	CIMInstance (CIMNULL_t)
	This CIMInstance object will be NULL.
	CIMInstance (const CIMInstance &arg)
	Copy ctor.
	CIMInstance (const CIMName &name)
	Create an CIMInstance.
	CIMInstance (const char *name)
	Create an CIMInstance.
	CIMInstance (const detail::CIMInstanceRepRef &rep)
	~CIMInstance ()
	Destroy this CIMInstance object.
virtual void	setNull ()
	Set this to a null object.
CIMInstance &	operator= (const CIMInstance &arg)
	Assignment operator.
CIMName	getClassName () const
CIMInstance &	setKeys (const CIMPropertyArray &keys)
	Set the keys for this instance.
CIMInstance &	setClassName (const CIMName &name)
	Sets the class name for this instance.
String	getLanguage () const
void	setLanguage (const String &language)
	Set the language this CIMClass is using.
CIMPropertyArray	getProperties (Int32 valueDataType=CIMDataType::INVALID) const
	Get all the properties of a specific datatype from this instance.
CIMInstance &	setProperties (const CIMPropertyArray &props)
	Set the properties associated with this instance.
CIMProperty	getProperty (const CIMName &name, const CIMName &originClass) const
	Get the property identified by a given name and origin class.
CIMProperty	getProperty (const CIMName &name) const
	Gets a property with the specified name.
CIMProperty	getPropertyT (const CIMName &name) const
	Gets a property with the specified name.
CIMValue	getPropertyValue (const CIMName &name) const
	Gets a property's value.
bool	propertyHasValue (const CIMName &name) const
	Test whether a property exists and has a non-NULL value.
CIMPropertyArray	getKeyValuePairs () const
CIMInstance &	updatePropertyValues (const CIMPropertyArray &props)
	Update the property values for this instance.
CIMInstance &	updatePropertyValue (const CIMProperty &prop)
	Update a single property value.
CIMInstance &	updatePropertyValue (const CIMName &name, const CIMValue &cv)
	Update a single property value.
CIMInstance &	setProperty (const CIMName &name, const CIMValue &cv)
	Update the value of a property if it exists.
CIMInstance &	setProperty (const CIMProperty &prop)
	Update a property in the property list if it exists.
CIMInstance &	removeProperty (const CIMName &propName)
	Remove a property from this CIMInstance.
CIMInstance	clone (const CIMPropertyList &propertyList=CIMPropertyList()) const
	Create a new CIMInstance from this CIMInstance using the specified criteria.
CIMInstance &	syncWithClass (const CIMClass &cc)
	Synchronize this instance with the given class.
CIMInstance	createModifiedInstance (const CIMInstance &previousInstance, const CIMPropertyList &propertyList, const CIMClass &theClass) const
	Create an instance with the set of changes that will occur for a modifyInstance call.
virtual CIMName	getName () const
virtual void	setName (const CIMName &name)
	Sets the class name for this instance.
virtual void	readObject (std::istream &istrm)
	Read this CIMInstance from an input stream.
virtual void	writeObject (std::ostream &ostrm) const
	Write this CIMInstance to an output stream.
virtual String	toMOF () const
virtual String	toString () const
bool	propertiesAreEqualTo (const CIMInstance &other) const
	This compares the properties of the instances, and returns true if they are equal.
	operator safe_bool () const
bool	operator! () const
detail::CIMInstanceRepRef	getRep () const
Protected Member Functions
void	_buildKeys ()
Protected Attributes
detail::CIMInstanceRepRef	m_rep
Friends
OWBI1_OWBI1PROVIFC_API bool	operator< (const CIMInstance &x, const CIMInstance &y)

---

Detailed Description

The CIMInstance class encapsulates all information pertinent to a CIMInstance.

CIMInstances are ref counted, copy on write objects. It is possible to have an CIMInstance object that is NULL. The method to check for this condition is as follows:

CIMInstance ci = ch.getInstance(...); if (!ci) { // Null instance } else { // Valid instance }

Providers generally follow these steps to create a CIMInstance object:

1. Obtain a CIMOMHandleIFC object hdl.

2. Use hdl to create a CIMClass object of the desired CIM class:

CIMClass cc = hdl.getClass(namespace, class_name);

3. Use CIMClass cc to create a CIMInstance of the desired CIM class:

CIMInstance inst = cc.newInstance();

4. Assign properties of inst as desired using setProperty().

Definition at line 81 of file OWBI1_CIMInstance.hpp.

---

Member Typedef Documentation

typedef detail::CIMInstanceRepRef CIMInstance::* OWBI1::CIMInstance::safe_bool

Definition at line 343 of file OWBI1_CIMInstance.hpp.

---

Member Enumeration Documentation

anonymous enum

Enumerator: SERIALIZATION_VERSION  Definition at line 84 of file OWBI1_CIMInstance.hpp.

enum OWBI1::CIMInstance::EErrorCodes

Enumerator: E_INSTANCE_HAS_NO_SUCH_PROPERTY  Reimplemented from OWBI1::CIMBase. Definition at line 86 of file OWBI1_CIMInstance.hpp.

---

Constructor & Destructor Documentation

CIMInstance::CIMInstance (   )

Default ctor. Definition at line 56 of file OWBI1_CIMInstance.cpp.

CIMInstance::CIMInstance (  CIMNULL_t   )  [explicit]

This CIMInstance object will be NULL. All subsequent operations on an instance of this type will fail. Definition at line 61 of file OWBI1_CIMInstance.cpp.

CIMInstance::CIMInstance (  const CIMInstance &  arg  )

Copy ctor. Parameters: arg  The CIMInstance that this object will be a copy of. Definition at line 76 of file OWBI1_CIMInstance.cpp.

CIMInstance::CIMInstance (  const CIMName &  name  )  [explicit]

Create an CIMInstance. Parameters: name  The class name of this CIMInstance. Definition at line 71 of file OWBI1_CIMInstance.cpp.

CIMInstance::CIMInstance (  const char *  name  )  [explicit]

Create an CIMInstance. Parameters: name  The class name of this CIMInstance as a NULL terminated string. Definition at line 66 of file OWBI1_CIMInstance.cpp.

OWBI1::CIMInstance::CIMInstance (  const detail::CIMInstanceRepRef &  rep  )  [explicit]

CIMInstance::~CIMInstance (   )

Destroy this CIMInstance object. Definition at line 81 of file OWBI1_CIMInstance.cpp.

---

Member Function Documentation

void CIMInstance::_buildKeys (   )  [protected]

Definition at line 214 of file OWBI1_CIMInstance.cpp. References i.

CIMInstance CIMInstance::clone (  const CIMPropertyList &  propertyList = CIMPropertyList()  )  const

Create a new CIMInstance from this CIMInstance using the specified criteria. Parameters: propertyList  An array of property names that specifies the only properties to be included in the returned instance. Returns: An CIMInstance object based on this one, filtered according to the specified criteria. Definition at line 383 of file OWBI1_CIMInstance.cpp. References OWBI1::Array< T >::append(), i, m_rep, and propertyList. Referenced by OWBI1::BI1SimpleInstanceProviderIFC::getInstance().

CIMInstance CIMInstance::createModifiedInstance (  const CIMInstance &  previousInstance, const CIMPropertyList &  propertyList, const CIMClass &  theClass )  const

Create an instance with the set of changes that will occur for a modifyInstance call. This instance is the new instance. The previous instance is passed in. The instance that is returned is what the new instance will be after modifyInstance is applied. Parameters: previousInstance  The instance before being modified. propertyList  "If the PropertyList input parameter is not NULL, the members of the array define one or more Property names. Only those properties specified in the PropertyList are modified as specified in the ModifiedInstance. Properties of the ModifiedInstance that are missing from the PropertyList are ignored. If the PropertyList input parameter is an empty array this signifies that no Properties are explicitly modified in the specified Instance. If the PropertyList input parameter is NULL this specifies that all Properties are updated in the specified Instance." theClass  The class of this instance. Definition at line 477 of file OWBI1_CIMInstance.cpp. References OWBI1::Array< T >::begin(), OWBI1::Array< T >::end(), getProperties(), OWBI1::CIMClass::getProperty(), getProperty(), OWBI1::CIMProperty::getQualifiers(), i, propertyList, removeProperty(), setProperties(), setProperty(), OWBI1::CIMProperty::setQualifiers(), and theClass.

CIMName CIMInstance::getClassName (   )  const

Returns: The name of the class for this instance. Definition at line 107 of file OWBI1_CIMInstance.cpp.

CIMPropertyArray CIMInstance::getKeyValuePairs (   )  const

Returns: An CIMPropertyArray that contains all of the keys for this instance. Definition at line 229 of file OWBI1_CIMInstance.cpp. Referenced by OWBI1::CIMObjectPath::setKeys().

String CIMInstance::getLanguage (   )  const

Returns: the language this CIMClass is using Definition at line 113 of file OWBI1_CIMInstance.cpp.

CIMName CIMInstance::getName (   )  const [virtual]

Returns: The name of the class for this instance. Implements OWBI1::CIMElement. Definition at line 404 of file OWBI1_CIMInstance.cpp.

CIMPropertyArray CIMInstance::getProperties (  Int32  valueDataType = CIMDataType::INVALID  )  const

Get all the properties of a specific datatype from this instance. Parameters: valueDataType  All properties returned must have this datatype. If CIMDataType::INVALID is specified, all properties will be returned. Returns: The properties associated with this instance if valueDataType is CIMDataType::INVALID. Otherwise only properties that have a values that have a data type specified by the valueDataType parameter. Definition at line 132 of file OWBI1_CIMInstance.cpp. References OWBI1::detail::unwrapArray(). Referenced by createModifiedInstance(), and propertiesAreEqualTo().

CIMProperty CIMInstance::getProperty (  const CIMName &  name  )  const

Gets a property with the specified name. Parameters: name  The name of the property to retrieve. Returns: The CIMProperty identified by the name on success. Otherwise a null CIMProperty object. Definition at line 157 of file OWBI1_CIMInstance.cpp. References i.

CIMProperty CIMInstance::getProperty (  const CIMName &  name, const CIMName &  originClass )  const

Get the property identified by a given name and origin class. Parameters: name  The name of the property to retrieve. originClass  The name of the origin class of the property. Returns: The CIMProperty identified by the given parameters on success. Otherwise a null CIMProperty object. Definition at line 150 of file OWBI1_CIMInstance.cpp. References OWBI1::CIMName::getRep(), and name. Referenced by createModifiedInstance().

CIMProperty CIMInstance::getPropertyT (  const CIMName &  name  )  const

Gets a property with the specified name. Parameters: name  The name of the property to retrieve. Returns: The CIMProperty identified by the name on success. Exceptions: an  NoSuchPropertyException (E_INSTANCE_HAS_NO_SUCH_PROPERTY) if the property is not found or NULL. Definition at line 172 of file OWBI1_CIMInstance.cpp. References OWBI1::String::c_str(), OWBI1_THROW_ERR, and OWBI1::CIMName::toString().

CIMValue CIMInstance::getPropertyValue (  const CIMName &  name  )  const

Gets a property's value. Parameters: name  The name of the property value to retrieve. Returns: The CIMValue of the specified property. It will be NULL if the property doesn't exist or the property's value is NULL. Definition at line 183 of file OWBI1_CIMInstance.cpp. References OW_NAMESPACE::CIMNULL, OWBI1::CIMProperty::getValue(), and name.

CIMInstanceRepRef CIMInstance::getRep (   )  const

Definition at line 711 of file OWBI1_CIMInstance.cpp. Referenced by OWBI1::detail::convertCIMInstance().

CIMInstance::safe_bool CIMInstance::operator CIMInstance::safe_bool (   )  const

Definition at line 699 of file OWBI1_CIMInstance.cpp. References m_rep.

bool CIMInstance::operator! (   )  const

Definition at line 705 of file OWBI1_CIMInstance.cpp.

CIMInstance & CIMInstance::operator= (  const CIMInstance &  arg  )

Assignment operator. Parameters: arg  The CIMInstance to assign to this one. Returns: A reference to this object after the assignment is made. Definition at line 91 of file OWBI1_CIMInstance.cpp. References m_rep.

bool CIMInstance::propertiesAreEqualTo (  const CIMInstance &  other  )  const

This compares the properties of the instances, and returns true if they are equal. It will sort the properties before comparing, so the order of the properties is irrelevant. Parameters: other  The instance to compare Returns: true if the properties are the same Definition at line 668 of file OWBI1_CIMInstance.cpp. References getProperties(), and OWBI1::Array< T >::size().

bool CIMInstance::propertyHasValue (  const CIMName &  name  )  const

Test whether a property exists and has a non-NULL value. Parameters: name  The name of the property to test. Returns: bool true if the property exists and has a non-NULL value. Definition at line 194 of file OWBI1_CIMInstance.cpp. References OWBI1::CIMProperty::getValue(), and name.

virtual void OWBI1::CIMInstance::readObject (  std::istream &  istrm  )  [virtual]

Read this CIMInstance from an input stream. Parameters: istrm  The input stream to read this object from. Implements OWBI1::SerializableIFC.

CIMInstance & CIMInstance::removeProperty (  const CIMName &  propName  )

Remove a property from this CIMInstance. Parameters: propName  The name of the property to remove. Returns: a reference to *this Definition at line 362 of file OWBI1_CIMInstance.cpp. References i. Referenced by createModifiedInstance().

CIMInstance & CIMInstance::setClassName (  const CIMName &  name  )

Sets the class name for this instance. Parameters: name  The new class name for this instance. Returns: a reference to *this Definition at line 125 of file OWBI1_CIMInstance.cpp. References name. Referenced by OWBI1::CIMClass::newInstance().

CIMInstance & CIMInstance::setKeys (  const CIMPropertyArray &  keys  )

Set the keys for this instance. Returns: a reference to *this Definition at line 98 of file OWBI1_CIMInstance.cpp. References OWBI1::detail::unwrapArray().

void CIMInstance::setLanguage (  const String &  language  )

Set the language this CIMClass is using. Parameters: language  The new language for this CIMClass Definition at line 119 of file OWBI1_CIMInstance.cpp. References OWBI1::String::c_str().

void CIMInstance::setName (  const CIMName &  name  )  [virtual]

Sets the class name for this instance. Parameters: name  The new class name for this instance. Returns: a reference to *this Implements OWBI1::CIMElement. Definition at line 518 of file OWBI1_CIMInstance.cpp. References name.

void CIMInstance::setNull (   )  [virtual]

Set this to a null object. All subsequent operation will fail after this call is made. Implements OWBI1::CIMBase. Definition at line 86 of file OWBI1_CIMInstance.cpp.

CIMInstance & CIMInstance::setProperties (  const CIMPropertyArray &  props  )

Set the properties associated with this instance. Note: this will clobber qualifiers associated with the properties which may already exist on the instance. You may want to instead consider updatePropertyValues(), which does not overwrite qualifiers. Parameters: props  An CIMPropertyArray that contains the new properties for this instance. Returns: a reference to *this Definition at line 141 of file OWBI1_CIMInstance.cpp. References OWBI1::detail::unwrapArray(). Referenced by createModifiedInstance().

CIMInstance & CIMInstance::setProperty (  const CIMProperty &  prop  )

Update a property in the property list if it exists. Otherwise add a new one. In most cases, updatePropertyValue() should be called instead of this function, because it won't add a new property. An instance is initialized will all it's properties by CIMClass::newInstance(). Parameters: prop  The property to add or update. Returns: a reference to *this Definition at line 327 of file OWBI1_CIMInstance.cpp. References OWBI1::CIMProperty::getName(), i, and OWBI1::CIMProperty::isKey().

CIMInstance & CIMInstance::setProperty (  const CIMName &  name, const CIMValue &  cv )

Update the value of a property if it exists. Otherwise add a new one. In most cases, updatePropertyValue() should be called instead of this function, because it won't add a new property. An instance is initialized will all it's properties by CIMClass::newInstance(). Parameters: name  The name of the property to add or update. cv  The CIMValue that contains the new value for the property. Returns: a reference to *this Definition at line 288 of file OWBI1_CIMInstance.cpp. References i, and name. Referenced by createModifiedInstance().

CIMInstance & CIMInstance::syncWithClass (  const CIMClass &  cc  )

Synchronize this instance with the given class. This will ensure that all properties found on the class exist on this instance. It will also optionally move all qualifiers from the class to the instance. Parameters: cc  The class to synchronize this instance with. Returns: a reference to *this Definition at line 410 of file OWBI1_CIMInstance.cpp. References OWBI1::CIMClass::getAllProperties(), OWBI1::CIMClass::getProperty(), i, OWBI1::Array< T >::remove(), OWBI1::Array< T >::size(), and theClass. Referenced by OWBI1::CIMClass::newInstance().

String CIMInstance::toMOF (   )  const [virtual]

Returns: The MOF representation of this CIMInstance as an String. Implements OWBI1::CIMBase. Definition at line 567 of file OWBI1_CIMInstance.cpp. References i.

String CIMInstance::toString (   )  const [virtual]

Returns: The string representation of the CIMInstance object. Implements OWBI1::CIMElement. Definition at line 633 of file OWBI1_CIMInstance.cpp. References i, and OWBI1::StringBuffer::toString().

CIMInstance & CIMInstance::updatePropertyValue (  const CIMName &  name, const CIMValue &  cv )

Update a single property value. Does not add prop is it doesn't exist. Parameters: name  The name of the property to update. cv  The new value for the property. Returns: a reference to *this Definition at line 281 of file OWBI1_CIMInstance.cpp. References name.

CIMInstance & CIMInstance::updatePropertyValue (  const CIMProperty &  prop  )

Update a single property value. Does not add prop is it doesn't exist. Parameters: prop  The CIMProperty to update in this instance. This CIMProperty with contain the new value. Returns: a reference to *this Definition at line 246 of file OWBI1_CIMInstance.cpp. References OWBI1::CIMProperty::getName(), OWBI1::CIMProperty::getValue(), i, OWBI1::CIMProperty::isKey(), and name.

CIMInstance & CIMInstance::updatePropertyValues (  const CIMPropertyArray &  props  )

Update the property values for this instance. Does not add properties if they don't exist. Parameters: props  An CIMPropertyArray that contains the properties to update this instance's properties with. Returns: a reference to *this Definition at line 235 of file OWBI1_CIMInstance.cpp. References i, and OWBI1::Array< T >::size().

void CIMInstance::writeObject (  std::ostream &  ostrm  )  const [virtual]

Write this CIMInstance to an output stream. Parameters: ostrm  The output stream to write this object to. Implements OWBI1::SerializableIFC. Definition at line 556 of file OWBI1_CIMInstance.cpp. References OWBI1_CIMINSTANCESIG_V, and OW_NAMESPACE::writeArray().

---

Friends And Related Function Documentation

OWBI1_OWBI1PROVIFC_API bool operator< (  const CIMInstance &  x, const CIMInstance &  y )  [friend]

Definition at line 663 of file OWBI1_CIMInstance.cpp.

---

Member Data Documentation

detail::CIMInstanceRepRef OWBI1::CIMInstance::m_rep [protected]

Definition at line 356 of file OWBI1_CIMInstance.hpp. Referenced by clone(), operator safe_bool(), OWBI1::operator<(), and operator=().

---

The documentation for this class was generated from the following files:

• OWBI1_CIMInstance.hpp
• OWBI1_CIMInstance.cpp

---
